Chimney liner installation in Bellair-Meadowbrook Terrace by local liner pros

Your Bellair-Meadowbrook Terrace flue rebuilt from the inside with a new liner of the right diameter and listed parts, following a free inspection.

Fully licensed and insured
Locally owned
Family owned and operated
Same-day service

Call (904) 920-5495 Free Inspection

Get Your Free Inspection

Get a quote for chimney and fireplace repair and installation in Jacksonville.

Quicker by phone? Call (904) 920-5495

Call our chimney crew

(904) 920-5495 Free Inspection

Chimney liner specialists who prove the flue first

Locally owned in Jacksonville
Family owned and operated
100% satisfaction guaranteed
Free inspection and estimate
Same-day service available
10% off any service

The flue is proved with a test piece first, so the liner and its insulation are sure to pass.

Free inspection and estimateWe sweep and measure the flue in Bellair-Meadowbrook Terrace at no charge before any liner is ordered.
Upfront pricing, no hidden feesLiner size, alloy, insulation and cap are one written price, set before the order goes in.
Workmanship warrantyHow we install the liner is covered by our workmanship warranty, and the maker's terms come in writing.

Call (904) 920-5495 Free Inspection

An insert already in the fireplace

An insert that vents through a short pipe into the old fireplace flue leaves its exhaust to find its way up a passage far larger than its collar. The gases cool, creosote collects in a smoke chamber that is hard to reach, and cleaning means pulling the insert out.

A full-length liner from the insert's collar to the top of the chimney changes all three. The exhaust stays warm and moves at the speed the insert was designed for, and the flue can be brushed from the top. For the Bellair-Meadowbrook Terrace insert, the job covers the adapter, the liner and any work on the surround. What burns below the flue decides the liner, so have that ready when you ring (904) 920-5495.

Census takers counted 14,482 people in Bellair-Meadowbrook Terrace in 2020. Bellair-Meadowbrook Terrace does not reach the coast.

A liner job from sweep to cap

Old flue swept clean before anything goes in
Flue proved with a test piece or guide cone
Liner diameter taken from the collar or the opening
Stainless alloy picked for the fuel you burn

Call (904) 920-5495 Free Inspection

Sweep, prove, size, reline

Sweep and prove the flue
The flue is swept clean, then a test piece or cone is lowered to make sure the liner will pass every bend.
Size and alloy chosen
The diameter comes from the appliance collar or the fireplace opening, and the alloy from the fuel.
Liner run down and joined
The liner goes down with its insulation where the listing asks, and joins the stove, insert or smoke chamber below.
Top plate, cap and record
The top plate is clamped and sealed, the cap fastened, and you get the installation record.

Cracked tile found during a sweep

A sweep in Bellair-Meadowbrook Terrace sometimes turns up cracked or missing flue tile. Hot gas and sparks can reach the brick behind a crack.

Relining with a listed stainless liner is one way to restore the flue, and the estimate explains the choices.

10% off any service booked within 72 hours of inspection

Cracked flue tile? Book the relining in the 72 hours after we inspect and save 10%.

Call (904) 920-5495 Free Inspection

Matching the alloy to the fuel

Stainless liners are not all the same steel. Makers list 316-type alloys for wood, coal, oil and standard-efficiency gas appliances, and offer tougher, more acid-resistant alloys for high-efficiency gas appliances, which run cool enough to leave acidic condensate in the flue.

The fuel and the appliance's category decide which alloy its listing allows. A liner fitted for a wood stove and later asked to carry a high-efficiency gas appliance may not be listed for that job, which is why a fuel change is a reason to check the liner before relying on it. The alloy and its listed fuels are named before the liner is ordered.

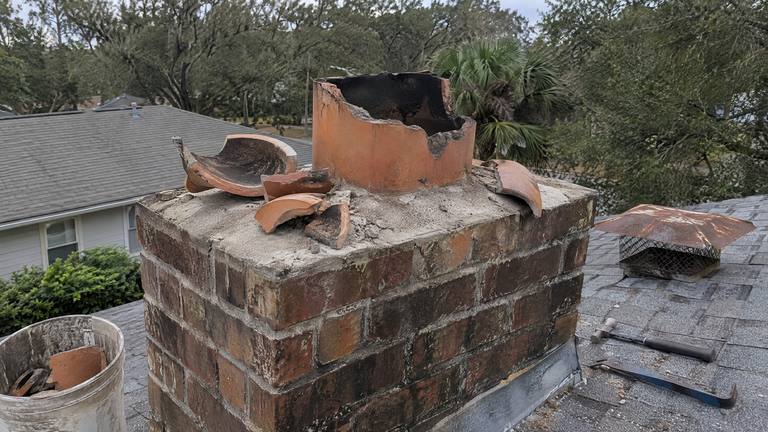

Old tile standing above the crown

Old clay tile can stand a few inches proud of the crown. If it is sound, one liner maker's instructions allow it to stay, with the top plate and cap fitted over it.

If it is cracked or crumbling, it is cut back flush with the crown using a chisel, taking care that pieces do not fall down the flue, and any that do are removed from the bottom. The cut surface and any cracks are filled with mortar so the top plate sits flat and seals against the masonry. The top is checked for level before the plate is set, whichever way it went.

Sizing a liner for an open fireplace

An open masonry fireplace has no collar to size from, so the liner is sized from the fireplace opening. The code sets the minimum flue area at one-twelfth of the opening for round flues and one-tenth for square ones (FBC R1003.15.1), and liner makers publish the same kind of ratio for their round liners.

The width and height of the opening are measured, the area worked out, and the liner diameter chosen to meet the ratio. A large opening can call for a liner bigger than the old flue can hold, and the options are explained when that happens.

Size, alloy and listing on paper

Liner diameter set from the appliance collar or the fireplace opening
Insulating blanket or poured mix wherever the listing calls for it
Broken tile and mortar bulges cleared out of the passage
Wall thimble checked for fit and clearance where the connector enters

Relining questions from Bellair-Meadowbrook Terrace

Can relining be done in one day?

A plain liner in a straight, clean flue can go in within a day. Tile removal, insulation, crown repair or a new wall opening add time, and the estimate gives the schedule.

Can you reline a chimney that has bends in it?

Yes, with flexible liner, which follows offsets that rigid sections cannot. The flue is proved first to make sure the liner and any insulation will pass the bends.
